The world of manufacturing is constantly pushing the boundaries, demanding automation that’s not just fast and safe, but truly flexible. One of the biggest holdups? Robot programming. It’s always been a manual, time-consuming task, prone to errors that bottleneck efficiency and drive up costs.
Siemens addresses this challenge with its Automatic Path Planner (APP), a powerful feature within Tecnomatix Process Simulate that automates collision-free robot path generation. More than just software, APP is a critical enabler in Siemens’ broader vision of intelligent, connected manufacturing.
Automating the Automation: Core Functionality of APP
The APP leverages advanced algorithms to transform how robot motion is planned and executed. It eliminates the need for tedious, error-prone manual programming with “teach-points.” Currently, APP automatically generates optimized, collision-free paths for welding operations, with plans to expand support for other robotic tasks in future updates.

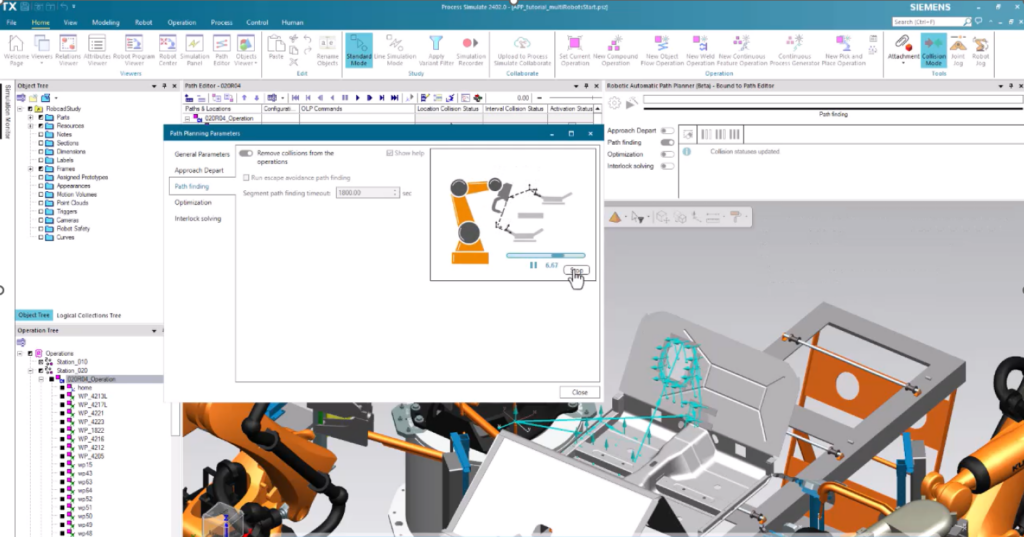

Collision-Free Path Generation
APP’s core strength is its ability to automatically generate collision-free motion paths for robots within a 3D virtual environment. Users start by importing 3D CAD data into Siemens Process Simulate, which serves as a digital twin of the manufacturing setup. APP then calculates paths that account for the environment’s physical constraints, robot geometry, and target tasks.
The system dynamically detects and resolves potential collisions during the simulation. Whether it’s avoiding tool collisions, robot self-collisions, or interference with nearby equipment or workers, APP manages these complexities in real time, drastically reducing the need for manual adjustment.

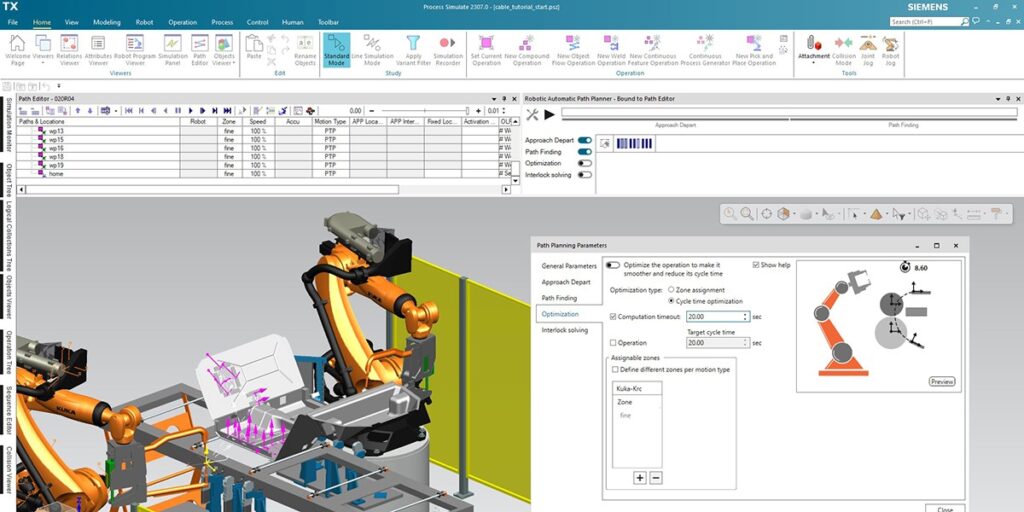

Optimization Intelligence
While APP’s primary focus is on generating collision-free paths, it also incorporates early-stage optimization techniques – including genetic algorithms – to refine paths based on basic performance criteria such as cycle time, speed, and energy use. Though some improvements have been observed, such as energy consumption reductions of up to 37% in select applications, capabilities like approach and departure angle handling, smooth transitions, and robot-specific alignment are still in development. These features are evolving with each version, but for now, APP’s core strength lies in ensuring safe, executable paths within complex environments.
Comprehensive Workflow
APP’s workflow is streamlined and intuitive:
This entire process occurs within a digital environment, allowing for rapid iterations and early problem identification – a “shift-left” approach to manufacturing engineering.
Beyond the Software: Integration into a Connected Ecosystem
APP is not an isolated tool – it is an add-on module within Siemens’ Process Simulate, part of the comprehensive Tecnomatix portfolio. This integration enhances its capabilities and makes it a central component in a fully connected digital manufacturing ecosystem.
Paths can be validated using Realistic Robot Simulation (RRS) for vendor-specific motion behavior. While not mandatory, RRS enhances accuracy and confidence before exporting to physical robots.
Multi-Robot Coordination
APP can manage multi-robot systems through a public API that adds intelligent interlocks, wait times, and coordination between robots in shared spaces. For more complex configurations, it integrates with Realtime Robotics’ RapidPlan plugin, enabling real-time, automated motion planning for multiple robots without manual via-point configuration.
Real-Time Validation & Feedback
Siemens APP in Process Simulate offers crucial real-time validation. It links virtual path planning to physical robots, creating a vital feedback loop. This accelerates deployment by validating paths live, reducing programming errors, and enhancing confidence. This interaction is key for efficient, error-free, and rapid robot deployment in manufacturing.
Reachability & Usability Enhancements
To improve user experience and planning efficiency, APP includes features like:
A Foundation for Future Manufacturing
The Siemens Tecnomatix’s feature, Automatic Path Planner exemplifies how intelligent software can revolutionize traditional manufacturing challenges. By automating complex robot programming tasks and integrating deeply with digital twin environments, APP enables:
But its real value lies in how it fits within Siemens’ broader vision for Industry 4.0. Through cloud-enabled collaboration, real-time robot feedback, and seamless data integration, APP helps companies move beyond isolated automation to a holistic digital manufacturing strategy.
The manufacturing future will demand agility, intelligence, and connectivity. With tools like the Automatic Path Planner embedded in a rich ecosystem, Siemens offers a clear path forward – one where automation automates itself, and factories become smarter, safer, and more responsive by design.
